DAHUA DH-XVR1B16-1

DAHUA DH-XVR1B16-1

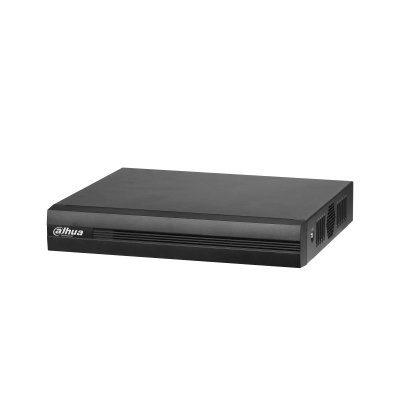

The Dahua DH-XVR1B16-1 is a 16-channel hybrid video recorder (XVR), offering video surveillance solutions for a wide range of applications. It supports both analog and IP cameras, making it a versatile option for modern surveillance systems that require a mix of legacy analog and newer IP-based cameras.

Key Features:

1. Hybrid Video Recorder (XVR):
   • Supports a combination of analog, HD-CVI, AHD, TVI, and IP cameras.
   • Provides the flexibility to integrate both analog and IP-based cameras within the same system.
2. High Video Resolution:
   • Supports recording in up to 1080P resolution for analog cameras, and up to 4K resolution for IP cameras.
   • This allows for high-definition recordings and clear images for monitoring purposes.
3. Advanced Video Compression:
   • Utilizes H.265+ compression technology, which reduces storage requirements and maximizes bandwidth efficiency while maintaining excellent video quality.
4. Multiple Channel Support:
   • 16 video inputs, enabling the connection of a variety of cameras and providing comprehensive coverage for larger areas or multiple locations.
5. Flexible Storage Options:
   • Supports SATA HDDs for storage, with a maximum capacity of 2 hard drives (each up to 6TB), providing ample space for storing large amounts of video footage.
   • The XVR features USB backup and network-based backup options for easier management of recorded video data.
6. Remote Monitoring:
   • Mobile app support via DMSS and web browser access for remote monitoring, viewing, and system management.
   • Users can monitor the system from anywhere with an internet connection.
7. Video Output:
   • Offers HDMI and VGA video outputs for easy connection to monitors or displays for viewing live footage or playback.
8. Audio Input/Output:
   • 1 audio input and 1 audio output, allowing for audio integration with the video feeds (ideal for environments requiring two-way communication).
9. Motion Detection & Event Triggers:
   • Includes built-in motion detection, line crossing, and intrusion detection to enhance the system’s ability to trigger alerts or actions based on specific events.
10. User-Friendly Interface:
    • Simple and intuitive GUI (Graphical User Interface) for easy system setup, configuration, and ongoing operation.

Specifications:

• Video Input:
  • 16 channels (Supports analog, HD-CVI, AHD, TVI, and IP cameras)
• Video Output:
  • 1 HDMI output (supports up to 4K resolution)
  • 1 VGA output (up to 1920×1080)
• Recording Resolution:
  • Analog: Up to 1080P
  • IP Cameras: Up to 4K (8MP)
• Compression:
  • H.265+, H.265, H.264+, H.264
• Audio Input/Output:
  • 1 audio input
  • 1 audio output
• Storage:
  • 2 SATA HDDs (max 6TB each)
• Power Supply:
  • DC 12V
  • Power Consumption: ≤ 20W (without HDD)
• Operating Conditions:
  • Temperature: -10°C to +55°C (14°F to 131°F)
  • Humidity: 10% ~ 90%
• Dimensions:
  • 375mm × 310mm × 51mm (14.76″ × 12.2″ × 2.01″)
• Weight:
  • Approx. 2.4 kg (5.3 lbs)
• Other Features:
  • Mobile App Support: DMSS
  • Backup Options: USB and network-based backup

Applications:

1. Commercial Surveillance:
   • Ideal for stores, small office buildings, or retail spaces needing a hybrid solution to combine analog and IP cameras for comprehensive security coverage.
2. Residential Surveillance:
   • Perfect for larger homes or residential complexes with mixed camera setups or the need for flexibility when upgrading older systems.
3. Industrial Use:
   • Suitable for industrial settings, factories, and warehouses where both types of cameras are required for large-scale surveillance solutions.
