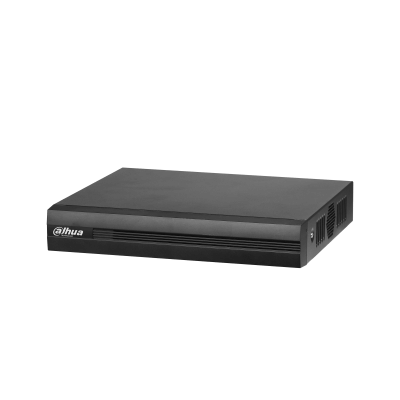

DAHUA DH-XVR1B16-1

The DAHUA DH-XVR1B16-1 is a 16-channel Hybrid Video Recorder (XVR) designed for comprehensive security systems, offering support for both analog and IP camera integration. It is part of Dahua’s XVR series, which provides excellent video recording and management capabilities for small to medium-scale surveillance installations.

Key Features

1. 16-Channel Hybrid Input
   • The DH-XVR1B16-1 supports up to 16 channels, providing flexible integration of analog and IP cameras. This hybrid capability allows users to expand their surveillance systems by incorporating both traditional CCTV cameras and newer IP-based cameras into a single platform.
2. HD Video Recording
   • This XVR supports 1080p resolution for analog cameras and up to 8MP for IP cameras. It delivers crisp, high-quality video recording, making it ideal for a variety of surveillance applications.
3. Advanced Compression Technology
   • The DH-XVR1B16-1 is equipped with H.265+/H.265 video compression, reducing bandwidth and storage requirements while maintaining high-quality video. This feature is especially beneficial for environments where video storage efficiency is crucial.
4. Multiple Remote Access Options
   • The device supports remote viewing and management through Dahua’s proprietary software or mobile apps, enabling users to access live video and recorded footage from anywhere at any time, via a smartphone, tablet, or PC.
5. Smart Motion Detection and Alarm
   • Integrated motion detection and alarm management features allow the XVR to trigger alerts and record footage only when motion is detected, enhancing security while minimizing unnecessary storage usage.
6. Multiple Video Output
   • The recorder provides multiple video output options, including HDMI and VGA outputs, allowing flexible display options for both local and remote monitoring.
7. Local and Network Recording
   • The device supports both local and network recording, with the ability to connect to IP cameras over a network while also handling analog camera connections via coaxial cables.
8. Reliability and Durability
   • With a solid build, the DH-XVR1B16-1 ensures reliable operation in various environments, maintaining consistent performance over time.
9. Smart Search and Playback
   • The recorder includes advanced smart search capabilities, allowing users to quickly find important footage from the recorded video, especially in large surveillance setups where manual searching would be time-consuming.
10. Backup and Storage Options
    • The DH-XVR1B16-1 supports multiple storage options, including external USB drives and eSATA connections for easy backup of recorded video.

Specifications at a Glance

• Video Channels: 16 channels (8 IP channels, 16 analog channels)
• Resolution: Supports up to 8MP for IP cameras, 1080p for analog cameras
• Compression Format: H.265+, H.265, H.264, H.264+
• Storage: 2 x SATA interfaces (supports up to 10TB each), eSATA port for additional storage
• Audio Input/Output: 1-channel input, 1-channel output
• Networking: 1 x RJ45 port (10/100/1000 Mbps), DHCP, PPPoE, Static IP
• Display Outputs: 1 x HDMI, 1 x VGA
• Power Supply: DC 12V, 3A
• Backup: USB, eSATA, Cloud options for backup and export
• Dimensions: 380 x 315 x 48 mm (14.96 x 12.40 x 1.89 inches)
• Weight: 1.5 kg (3.31 lbs)

Applications

• Commercial Surveillance: Ideal for small-to-medium-sized businesses, retail stores, and office buildings that require both analog and IP camera support, allowing for easy upgrades and integration.
• Industrial and Warehouse Security: Suited for warehouse, industrial, and factory environments where hybrid video recording is essential for managing different types of camera setups.
• Residential Security: A cost-effective solution for residential properties, especially where older analog cameras are still in use but there is a need for future expansion with IP cameras.
• Public and Government Facilities: Great for local government buildings, educational institutions, and public spaces that need reliable video surveillance and monitoring.
