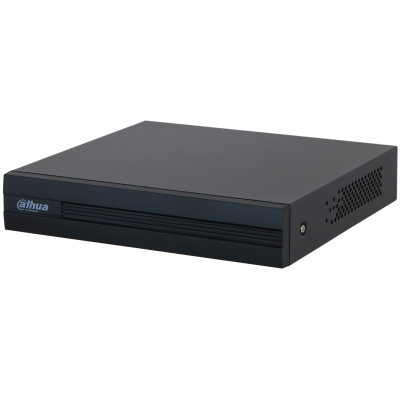

DAHUA DH-XVR1B08-1

DAHUA DH-XVR1B08-1

The DAHUA DH-XVR1B08-1 is an 8-channel Penta-brid digital video recorder (DVR) designed for efficient and reliable video surveillance. It supports multiple video technologies, making it suitable for small-to-medium-scale security systems.

Key Features:

1. Penta-brid Technology:
   • Compatible with HDCVI, AHD, TVI, CVBS (analog), and IP cameras for flexibility in system integration.
2. High Definition Recording:
   • Supports up to 1080N/720P recording resolution, ensuring clear and detailed video footage.
3. Channel Support:
   • Handles 8 analog channels and additional 2 IP channels, creating a hybrid system for broader coverage.
4. Compression Technology:
   • Utilizes H.265+/H.265 compression for efficient storage management without compromising video quality.
5. Smart Motion Detection (SMD):
   • Detects humans and vehicles, reducing false alarms caused by irrelevant objects.
6. Storage Options:
   • Supports 1 SATA HDD with a capacity of up to 6TB, allowing for extended recording periods.
7. Remote Access:
   • Fully compatible with Dahua’s DMSS mobile app, enabling live view, playback, and system management remotely.
8. Playback and Search:
   • Offers 1/4/8 channel synchronous playback and smart search functionality to quickly locate events.
9. Video Output:
   • Equipped with HDMI and VGA outputs for flexible display options.
10. Connectivity:
    • Provides multiple interfaces for video, audio, network, and peripheral devices.

Specifications:

• Video Input: 8 channels (analog)
• IP Camera Support: 2 additional IP channels (up to 6MP resolution)
• Audio Input/Output: 1/1
• Video Output:
  • 1 HDMI (up to 1080P resolution)
  • 1 VGA
• Compression Format: H.265+/H.265/H.264+/H.264
• Playback: 8 channels simultaneously
• Max Incoming Bandwidth: 32 Mbps
• Storage: 1 SATA port, up to 6TB
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet port
• USB Ports: 2 × USB 2.0
• Power Supply: DC 12V/1.5A
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Dimensions: 260mm × 236mm × 48mm
• Weight: 0.75kg (without HDD)

Applications:

1. Residential Surveillance:
   • Ideal for monitoring homes, small apartments, or residential complexes.
2. Small Business Security:
   • Suited for retail shops, offices, and small warehouses needing reliable surveillance.
3. Hybrid Systems:
   • Perfect for upgrading analog systems by adding IP cameras.
