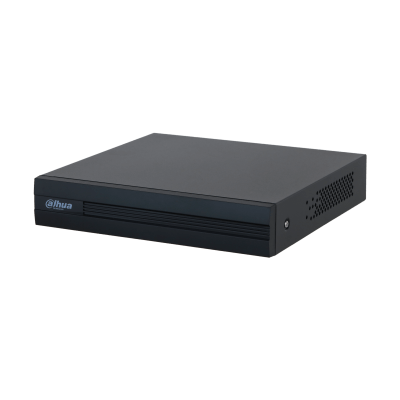

DAHUA DH-XVR1B08-1

The DAHUA DH-XVR1B08-1 is an 8-channel Penta-brid digital video recorder (DVR) designed to provide seamless integration of various camera technologies for small to medium-scale surveillance systems. With its compact design and advanced features, it is perfect for residential and commercial security setups.

Key Features

1. 8-Channel Penta-brid Support
   • Supports HDCVI, AHD, TVI, CVBS, and IP camera formats, making it compatible with a wide range of analog and IP cameras for flexible deployment.
2. High-Definition Recording
   • Records analog channels in resolutions of up to 1080N and IP channels in up to 6MP, delivering clear and detailed footage suitable for security analysis.
3. Smart H.265+/H.265 Compression
   • Optimizes bandwidth and storage usage while maintaining high-quality video, ensuring efficient performance and cost savings on storage.
4. Hybrid Camera Input
   • Accommodates up to 8 analog cameras or a combination of 4 analog and 4 IP cameras, providing scalability and adaptability for growing surveillance needs.
5. Flexible Video Outputs
   • Equipped with both HDMI and VGA outputs, supporting simultaneous display at resolutions of up to 1080p, suitable for various monitoring setups.
6. Smart Search
   • Features a Smart Search function for quick and efficient review of video footage, helping to locate events or incidents easily.
7. Remote Monitoring
   • Compatible with the DMSS mobile app and DSS software, allowing users to access live footage, playback, and manage settings remotely via smartphones or PCs.
8. Compact and User-Friendly Design
   • The lightweight and compact form factor makes it easy to install, while its intuitive user interface simplifies operation for administrators.
9. Reliable Storage
   • Features one SATA port supporting up to 6TB, providing ample storage for recording video data over extended periods.
10. Energy Efficient
    • Built with low power consumption for continuous, reliable operation in small to medium-scale setups.

Specifications at a Glance

• Video Input: 8 channels (HDCVI/AHD/TVI/CVBS) or a combination of 4 analog and 4 IP (up to 6MP resolution)
• Video Output: HDMI and VGA (up to 1080p resolution)
• Compression: Smart H.265+/H.265
• Storage: 1 SATA port (up to 6TB capacity)
• Max Recording Resolution: 1080N (analog), 6MP (IP)
• USB Ports: 2 x USB 2.0
• Network Interface: 1 x RJ-45 port (10/100Mbps)
• Power Supply: DC 12V/2A
• Dimensions: 260 mm × 236 mm × 48 mm (10.2″ × 9.3″ × 1.9″)
• Weight: 0.75 kg (1.65 lbs)

Applications

• Residential Security: Ideal for homes requiring an affordable yet effective surveillance solution.
• Small Offices: Ensures monitoring of entrances, workspaces, and storage areas.
• Retail Shops: Provides coverage for sales floors and checkout areas with clear video for incident review.
• Storage Facilities: Monitors entry points and sensitive areas for unauthorized access.
