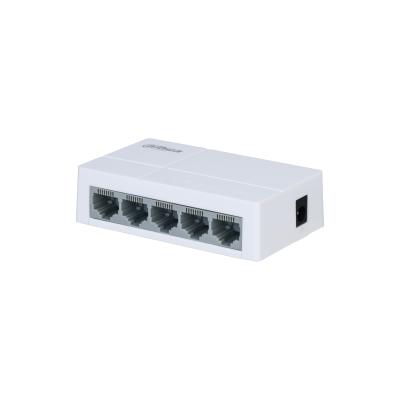

DAHUA DH-PFS3005-5ET-L-

The DAHUA DH-PFS3005-5ET-L is a 5-port 10/100/1000 Mbps Ethernet switch designed to support Power over Ethernet (PoE) applications. It is ideal for use in surveillance systems and other network applications where PoE is required to provide both power and data connectivity to connected devices, such as IP cameras, access points, and network devices. With robust design and ease of installation, the switch is well-suited for both small and medium-scale installations.

Key Features

1. 5-Port Gigabit Ethernet Switch
   • The DH-PFS3005-5ET-L offers 5 Gigabit Ethernet ports, enabling high-speed data transmission at up to 1000 Mbps (1 Gbps). It supports full-duplex data transfer and auto-negotiation, ensuring reliable and fast connectivity for devices in a network.
2. PoE (Power over Ethernet) Support
   • The switch features 4 PoE ports that support the IEEE 802.3af/at PoE standard. Each of these PoE ports can deliver power to connected devices such as IP cameras, VoIP phones, and wireless access points, eliminating the need for separate power cables and simplifying installation by delivering both power and data over a single Ethernet cable.
3. Total PoE Power Budget
   • The total PoE power budget for the DH-PFS3005-5ET-L is up to 65W, allowing for the connection of multiple PoE-enabled devices. This ensures adequate power supply to devices, such as IP cameras, that require PoE for operation.
4. Plug-and-Play Installation
   • This Ethernet switch offers plug-and-play installation, making it easy to deploy without requiring complex configuration. It is designed for ease of use, with automatic detection of connected devices and power requirements.
5. Compact and Durable Design
   • The compact form factor and durable design make this switch suitable for use in home offices, small businesses, and surveillance setups. Its sleek housing allows it to be mounted on a wall or placed on a desktop.
6. IEEE 802.3/802.3u/802.3ab/802.3af/802.3at Compliance
   • The switch complies with several industry standards, including IEEE 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3ab (Gigabit Ethernet), 802.3af (PoE), and 802.3at (PoE+), ensuring compatibility with a wide range of network devices.
7. Efficient Heat Dissipation
   • The DH-PFS3005-5ET-L features an efficient heat dissipation design, with sufficient airflow to prevent overheating during operation, ensuring long-lasting and reliable performance even under continuous load.
8. LED Indicators
   • The switch is equipped with LED status indicators for each port, allowing users to easily monitor the connection and operational status of each device connected to the switch.
9. Wide Operating Temperature Range
   • The DH-PFS3005-5ET-L is designed to operate in a wide temperature range of -10°C to 50°C (14°F to 122°F), making it suitable for use in various environments, including temperature-sensitive areas.

Specifications at a Glance

• Ports: 5 x 10/100/1000 Mbps Ethernet ports (4 PoE ports).
• PoE Power: 4 PoE ports supporting IEEE 802.3af/at.
• Total PoE Power Budget: 65W.
• Standard Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at.
• Operating Temperature: -10°C to 50°C (14°F to 122°F).
• Power Supply: 48V DC, 1.5A (PoE Injector included).
• Dimensions: 200mm x 96mm x 27mm (7.87 x 3.78 x 1.06 inches).
• Weight: 0.45 kg (0.99 lbs).
• Power Consumption: Max 70W.

Ideal Use Cases

• Surveillance Systems: Perfect for connecting IP cameras to a network while providing them with power through PoE. Ideal for small to medium-scale CCTV setups in homes, offices, and commercial properties.
• Small Business Networks: Suitable for small business installations where network devices like IP phones, wireless access points, and network cameras require PoE and fast Ethernet connectivity.
• Home Office and SMB Installations: Ideal for home offices or small-to-medium businesses that need simple, efficient networking with PoE devices, reducing the need for additional power outlets.
• Flexible Network Expansion: The 5-port design makes it a good choice for expanding existing network setups with minimal effort.
