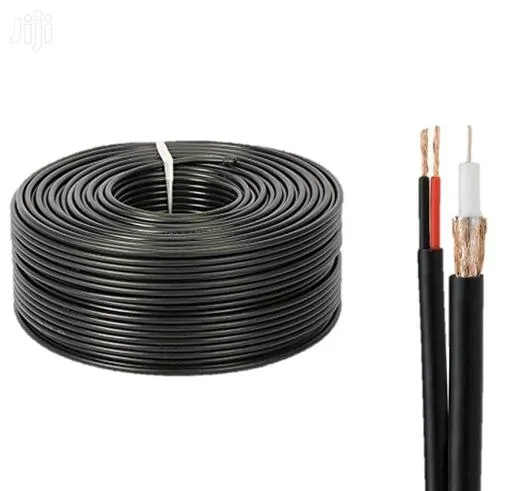

CCTV Coaxial Cable RG59 200m

The RG59 200M Coaxial Cable is a versatile and widely used cable designed for video signal transmission in various applications such as CCTV surveillance systems, broadcasting, and audio/video equipment. This cable is ideal for transmitting low-frequency signals with minimal interference, ensuring high-quality video and data transmission over medium distances.

Key Features

1. High-Quality Signal Transmission:
   • RG59 is a coaxial cable that provides reliable signal transmission for video and audio signals, making it a popular choice for CCTV systems.
   • It has excellent electrical performance, with low attenuation (signal loss) over distance, ensuring the signal reaches the destination clearly without significant degradation.
2. Copper Center Conductor:
   • The cable features a copper-clad steel or solid copper center conductor, offering superior conductivity for better signal quality, ensuring clear transmission of video and audio signals.
3. Excellent Insulation and Shielding:
   • RG59 cables are typically insulated with foam polyethylene (PE) or solid polyethylene (PE) for high-quality insulation and signal protection.
   • The cable also features braided shielding (often made from copper or aluminum), providing protection from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable and clear signal transmission.
4. Durable and Flexible Construction:
   • RG59 cables are flexible and easy to install in various settings, whether indoors or outdoors, making them perfect for CCTV installations and other video-based applications.
   • The jacket is typically made from PVC or PE, providing weather resistance and abrasion resistance, ensuring the cable performs well even in harsh conditions.
5. Applications:
   • CCTV Surveillance: RG59 cables are commonly used for connecting CCTV cameras to DVRs (digital video recorders) in both commercial and residential security systems.
   • Audio/Video Systems: RG59 is also used in various audio/video systems, such as TV antennas, broadcasting, and VCRs, for high-quality signal transmission.
   • Professional Video Equipment: Suitable for use in studio cameras, audio/video mixers, and other video-related devices, where high-fidelity video transmission is crucial.
6. Length:
   • The 200-meter roll of RG59 cable offers enough length for large installations, such as connecting multiple CCTV cameras across long distances.

Specifications

• Cable Type: RG59 Coaxial Cable
• Conductor Material: Copper-clad steel or solid copper (for optimal signal conductivity)
• Dielectric Insulation Material: Foam polyethylene (PE) or solid polyethylene (PE)
• Shielding: Braid shield (made from copper or aluminum) for protection against EMI/RFI
• Jacket Material: PVC (for durability and weather resistance)
• Impedance: 75 Ohms (standard for video signal transmission)
• Bandwidth: Suitable for frequencies up to 500 MHz, making it ideal for analog video transmission.
• Cable Diameter: Approximately 6mm (depending on insulation thickness)
• Length: 200 meters (for long-distance installations)
• Voltage Rating: Low voltage, designed for signal transmission, typically rated for 12V-24V systems.
• Color: Usually black, but other colors may be available.

Applications

1. CCTV Systems:
   • RG59 is the standard cable used to connect CCTV cameras to video recorders (DVR) or monitors, ensuring clear video feed over moderate distances.
   • Perfect for both analog CCTV systems and hybrid CCTV systems that use analog cameras.
2. Security Systems:
   • Often used in security video monitoring systems, RG59 cables connect cameras and monitors, ensuring that the signals are transmitted reliably for real-time surveillance.
3. Video Conferencing and Broadcasting:
   • Broadcasting stations use RG59 for video signal routing between equipment, ensuring clean and uninterrupted video transmission.
   • Video conferencing systems also benefit from RG59 due to its ability to transmit video feeds with low distortion.
4. Home Audio/Visual Systems:
   • Can be used for high-quality signal transmission between audio/video devices, such as DVD players, home theater systems, and television sets.
5. Long-Distance Video Signal Transmission:
   • The 200-meter length makes this cable suitable for applications where long distances need to be covered, such as connecting distant cameras to central monitoring stations or video recorders.
